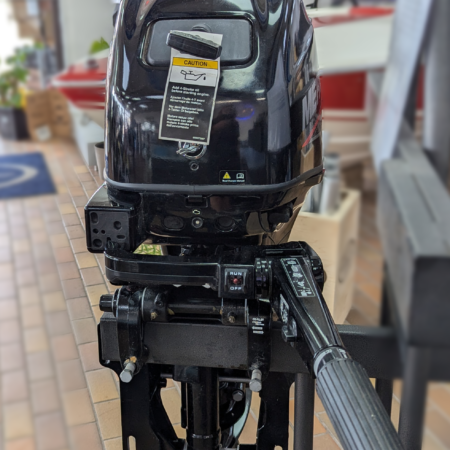

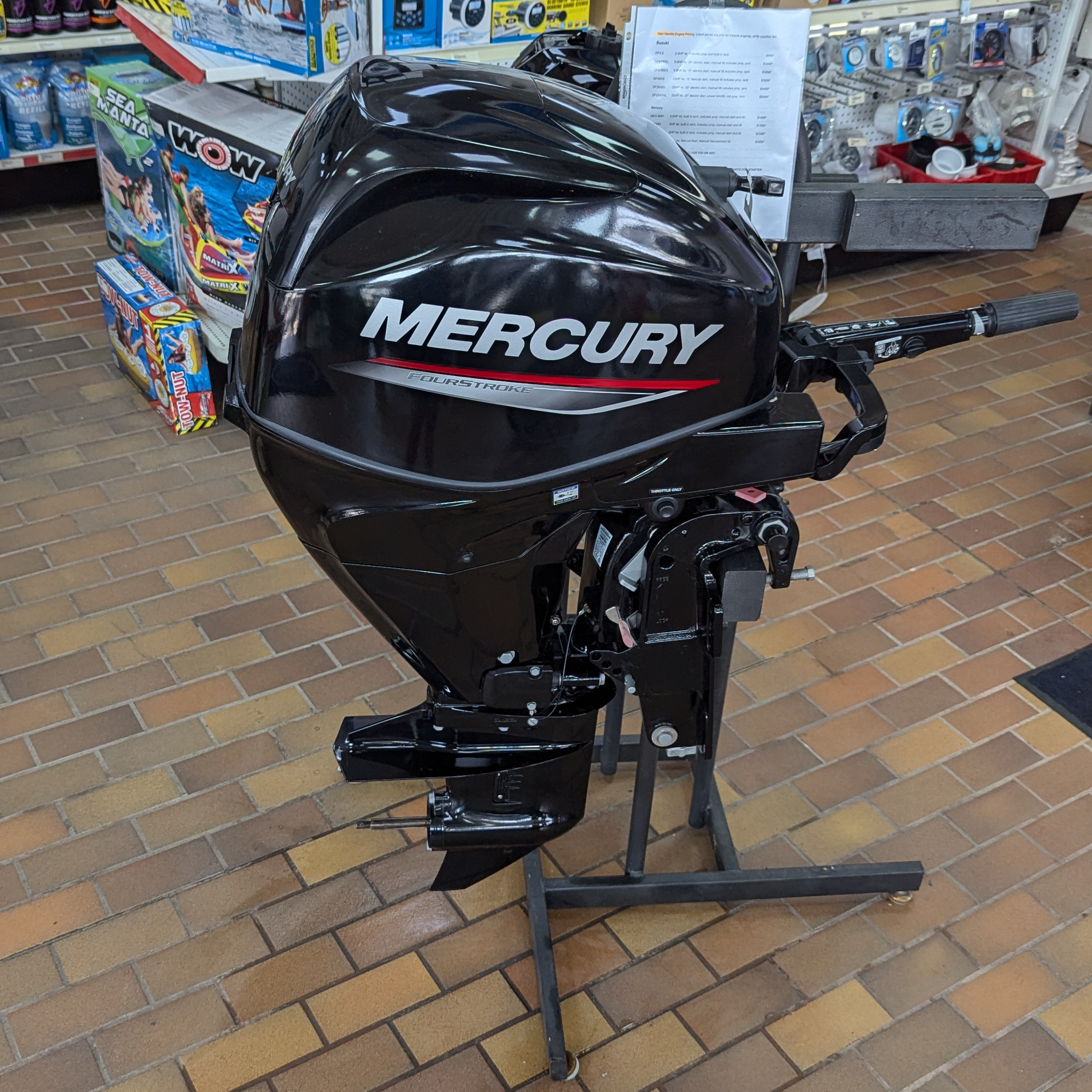

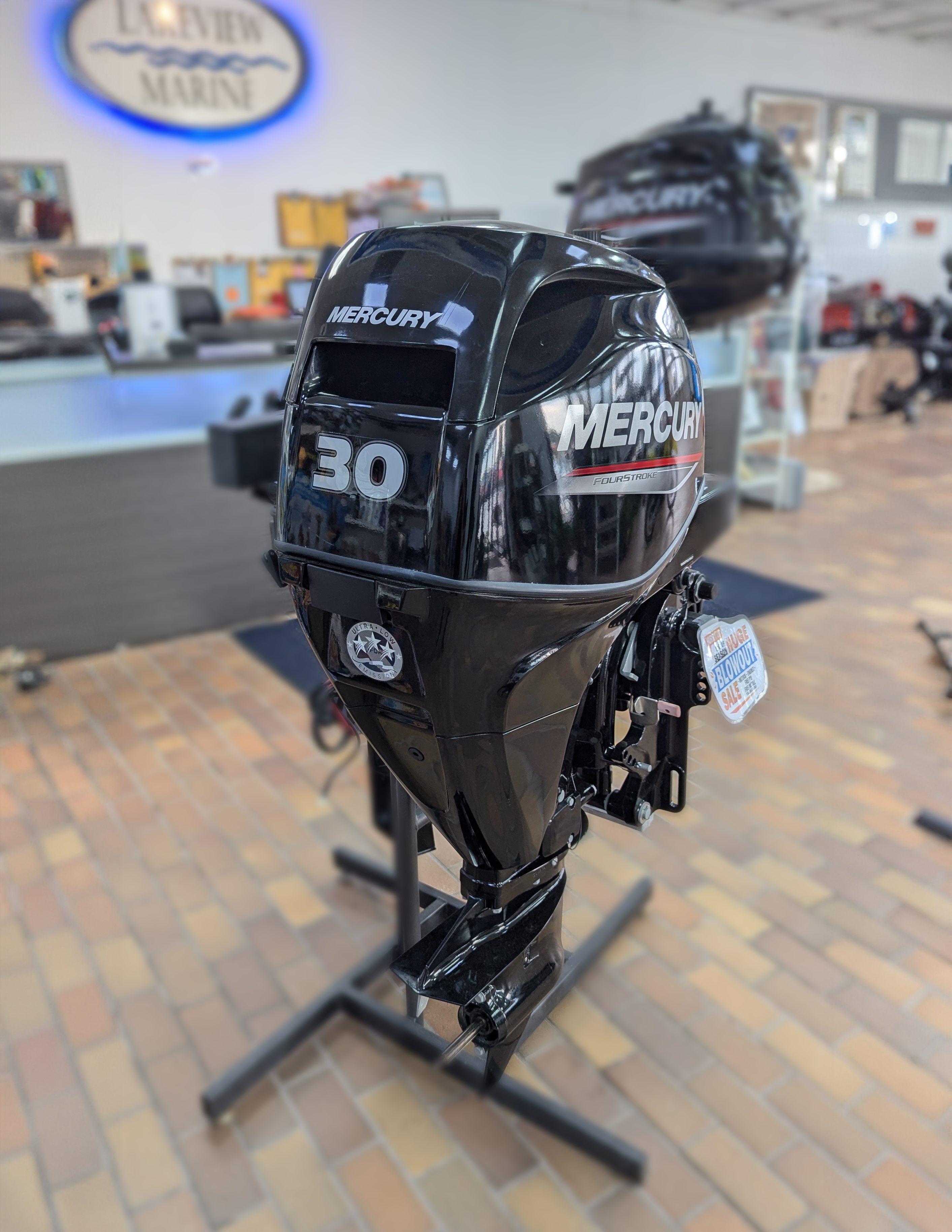

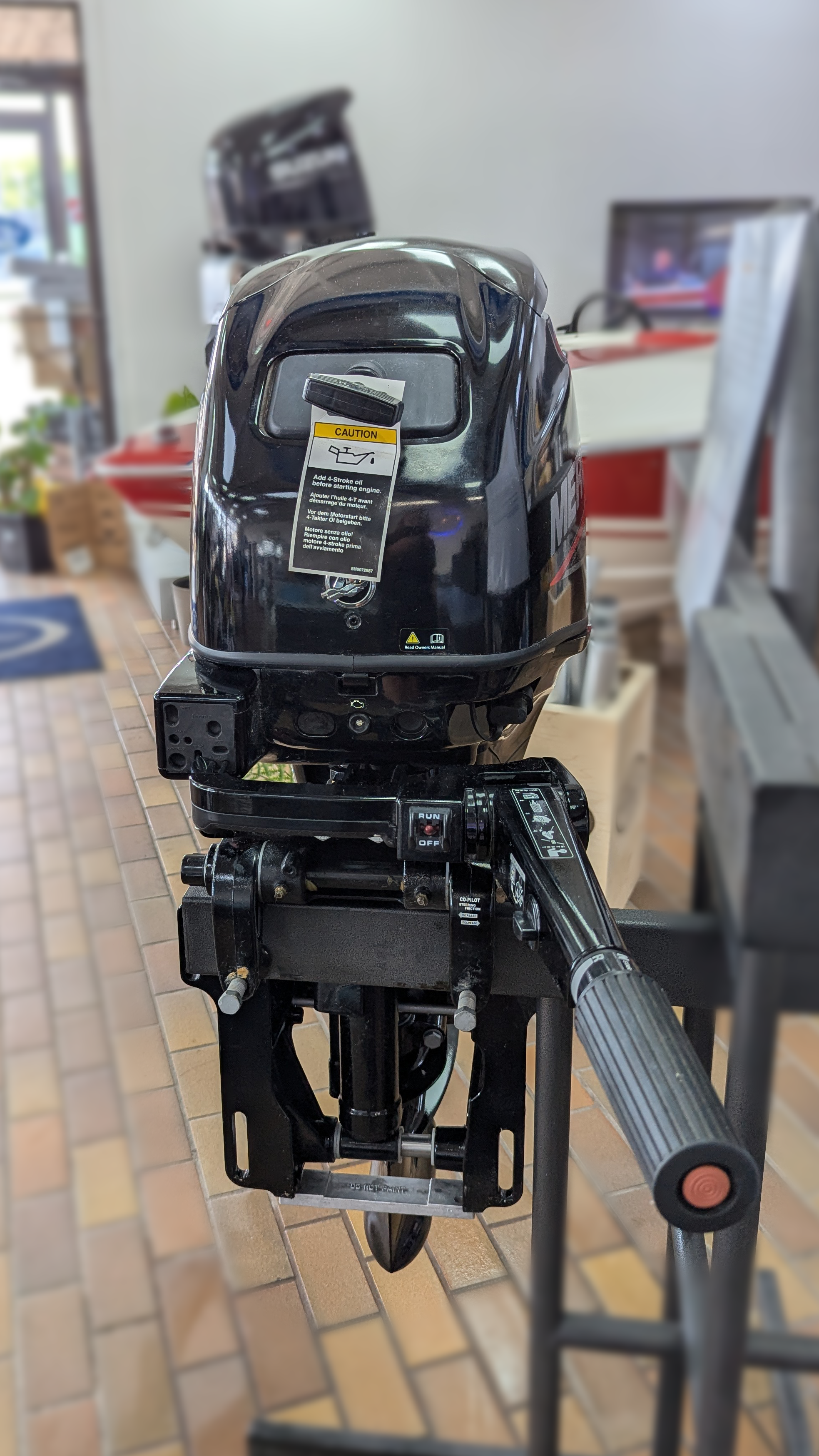

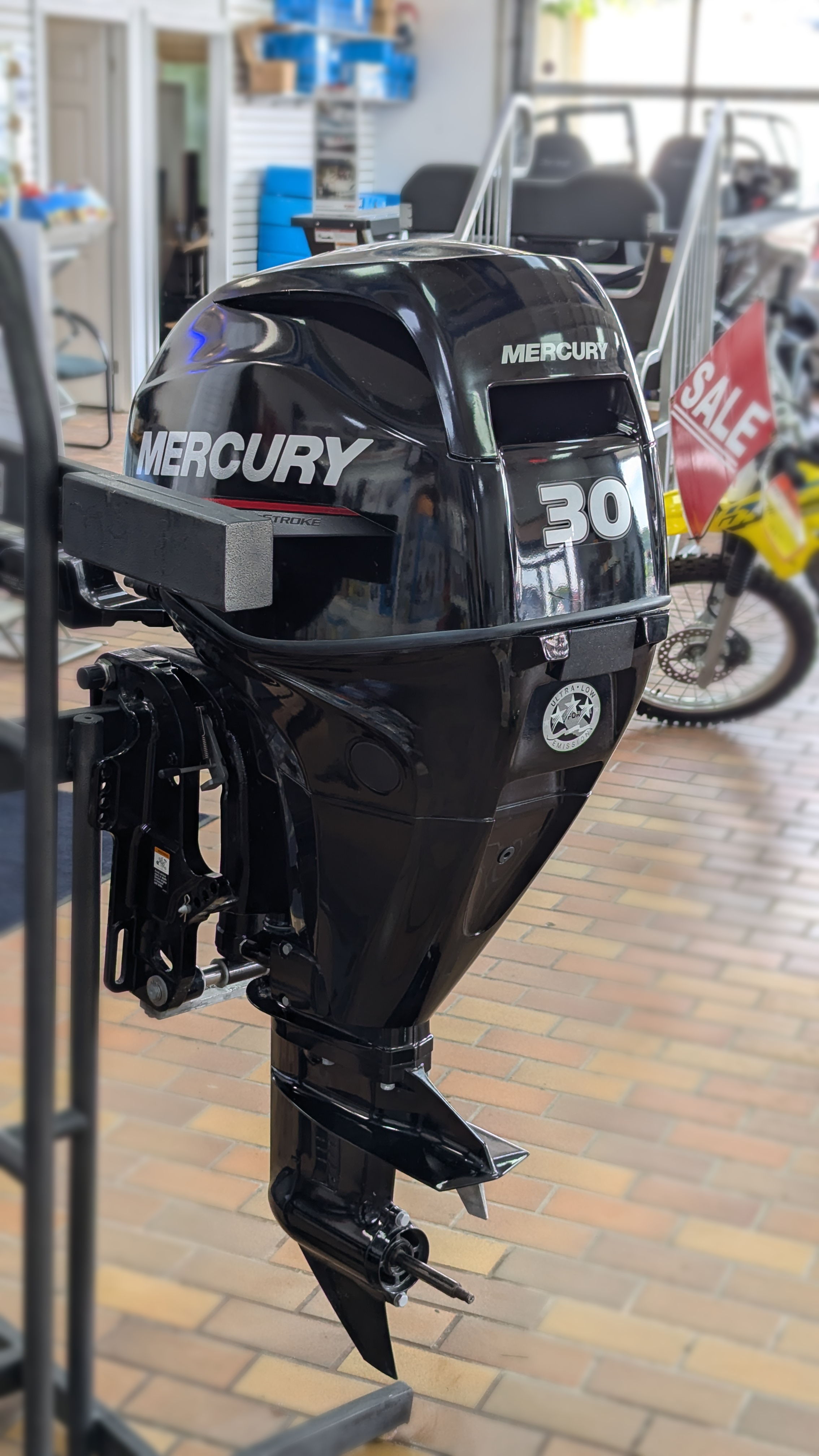

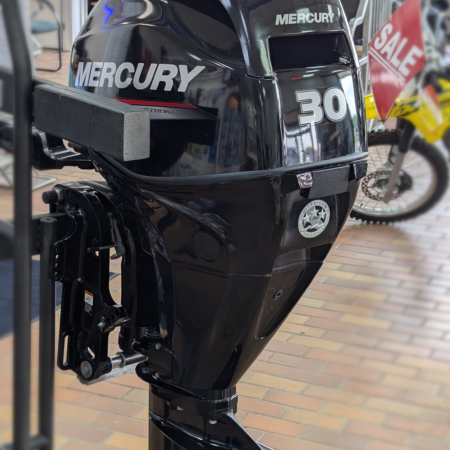

2020 Mercury 30MHGA

SPECIFICATIONS
HP / kW: 30 / 22.4
Engine type: Inline 3
Displacement (CID/CC): 32.1 / 526
Full throttle RPM: 5250-6250
Fuel induction system: 2 valves per cylinder, single overhead cam (SOHC)
Alternator amp / Watt: 15 amp / 186 watt
Recommended fuel: 87% octane / up to 10% ethanol
Recommended oil: Mercury FourStroke Oil 10W-30
Engine protection operator warning system: Low oil pressure; Over-rev; Overheat; Sensor failure
Starting: Electric (turn-key); Manual
Steering: Remote; Tiller
Shaft length: 15″ / 381 mm
Gearcase ratio: 1.92:1
Dry weight *Lightest model available: 172 lbs / 78 kg
CARB star rating: 3
Bore and stroke: 2.40 x 2.36″ / 61 x 60 mm
Ignition: CDI w/electronic spark advance
Fuel system: Electronic Fuel Injection (EFI)
Cooling system: Water-cooled with thermostat
Gear shift: F-N-R
Gearcase options: Standard
Trim system: Gas assist; Power Trim
Exhaust system: Through prop
Shallow water trim range (degrees): 16
Remote fuel tank standard (gal / L): 6.6 / 25
Color: Phantom Black

NOTES:
Dry weight based on lightest model available.
